Up to 12 inputs and 2 relay outputs
Control via SMS, Tweets, Web, free calls or keyboard codes (DTMF)
Alerts to multiple recipients on local events (SMS, Call, Email, Tweet)
FCC PART 15 COMPLIANT

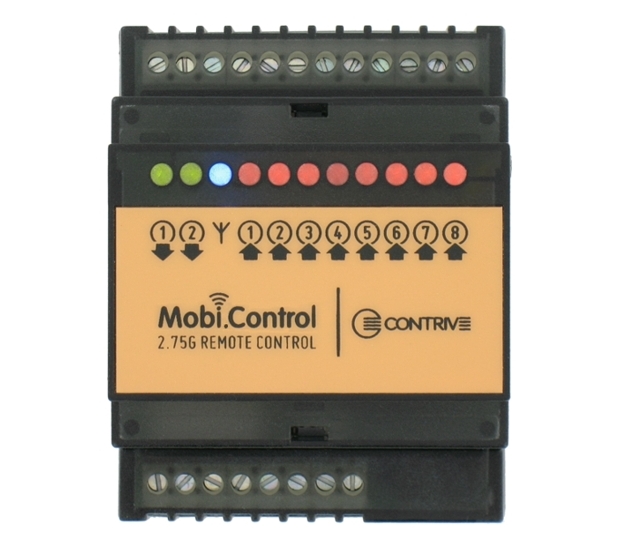

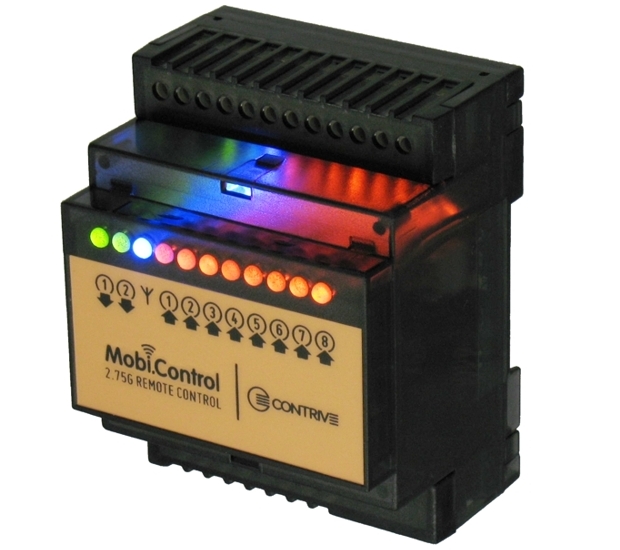

Mobi.Control is an industrial DIN rail GSM modem for the supervision and control of remote inputs and outputs by means of enhanced features available through GSM network and the Web.

Mobi.Control sends user defined messages via SMS, tweet, e-mail or free phone rings.
Mobi.Control can provide detailed reports on input status and notify local events. Outputs can be controlled by authorized users via SMS, tweet, Web, free phone rings and phone keyboard.

The user can configure the unit to deploy actions when a specific event occurs.

Mobi.Control is rich with functionality, however…

YOU DON’T NEED TO USE ALL THE FEATURES − OR ANY OF THEM, FOR THAT MATTER

SET UP THE FUNCTIONS YOU NEED − BUT IT IS GREAT TO HAVE THEM WHEN YOU NEED THEM

EXPAND THE USAGE OVER TIME − YOU CAN ADD NEW SERVICES AS YOU GO

Quad band GSM / GPRS / EDGE communication with automatic or manual selection on bands 850 / 900 / 1800 / 1900 MHz for data, sms, fax and voice applications.

Full Type Approved and compliant with ETSI GSM Phase 2+ and with Part 15 of the FCC Rules.

  • 01 • Negative
  • 02 • Analog In 1
  • 03 • Analog In 2
  • 04 • Positive 3,3V
  • 05 • Digital In 1
  • 06 • Digital In 2
  • 07 • Digital In 3
  • 08 • Digital In 4
  • 09 • Digital In 5
  • 10 • Digital In 6
  • 11 • Digital In 7
  • 12 • Digital In 8
  • 13 • Output common
  • 14 • Relay Out 1
  • 15 • Relay Out 2
  • 16 • NC
  • 17 • Counter In 1
  • 18 • Counter In 2
  • 19 • Power Supply
  • 20 • Power Supply
CONTROL
  • • SMS multiple commands, case insensitive
  • • SMS timer and schedule commands
  • • CLIP (pulse, toggle and reverse mode)
  • • DTMF (multiple keyboard commands)
  • • Tweets
REPORTS / ALARMS
  • • SMS, Status SMS (specific for each recipient)
  • • Phone call
  • • Email (specific for each recipient)
  • • Tweets (specific for each recipient)
SPECIAL FEATURES
  • • Power fail detection (blackout)
  • • Local and remote configuration
  • • LOG tracing to com port
  • • LOG memory (last 99 activities)
  • • Real time clock (autosync)
  • • Scheduled activities
  • • Users management and Interactive messages
ENVIRONMENT
  • • DIN EN-50022 rail 4 modules
  • • Polycarbonate self-extinguish UL94-V0
  • • Weight: 200 g
  • • Operating temperature: -20 … 60°C
  • • Relative humidity: 5 … 95% non condensing
  • • Degree of protection IP40
POWER SUPPLY
  • • DC Voltage: 9,5 … 35 V polarity independent
  • • AC Voltage: 9,5 … 27 V
  • • Idle Power: < 200 mW
  • • Peak Power: < 5 W
  • • Optional Li-Poly backup battery
DATA INTERFACE
  • • RS-232 (RJ45 modular connector)
  • • 300 … 115200 bit/s
  • • 7/8 data bit, 1/2 stop bit, 1 parity bit
  • • Software handshake , Hardware handshake
OUTPUT POWER
  • • Class 4 (2W for GSM850 and EGSM900)
  • • Class 1 (1W for DCS1800 and PCS1850)
8 DIGITAL INPUTS
  • • Input voltage: 3 … 9 VDC
  • • Input current: 5mA @ 5V
  • • Debounce time: 1 … 300 s
2 COUNTER INPUTS
  • • Input voltage: 3 … 9 VDC
  • • Input current: 5mA @ 5V
  • • Pulse width: > 200 ms
  • • Frequency: < 2,5 Hz
2 ANALOG INPUTS
  • • Input: 0 … 2V | 0 … 10V | 0 … 20mA | NTC
  • • Resolution: 10 bits
  • • Accuracy: ±1% / 2 … 40°C (36 … 99°F)
  • • Full scale value: 1 … 100000
  • • Zero (offset): 0 … 90%
2 RELAY OUTPUTS
  • • SPST contacts
  • • rated current 3 A
  • • rated voltage 250 Vac
  • • max breaking capacity 750 VA
